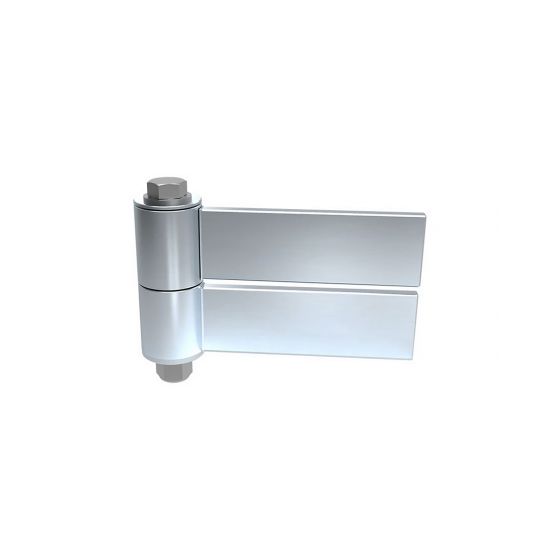

D&D Shut-It® BadAss™ Barrel Strap Hinge
Part Number: CI3900
The Shut-It® BadAss™ Barrel Strap Hinge is a barrel hinge that includes a 6" strap for convenient and flexible gate installations. This hinge is one of D&D's strongest gate hinges with more bearing load than any hinge on the market. Combining different lengths top and bottom, it is the ideal solution for opening a gate on an uphill gradient.
- Suitable for welding onto flat and square posts
- CNC machined to the tightest tolerances in the industry
- Unique brushing design produces near-frictionless movement
- High-temperature sealed bearings which are safe to powder coat with hinges installed on the gate
- Leaf straps can be custom-cut to length
- Maintenance free bearings with no greasing required
- Swings 180°
- Load rating per gate: 3,000 lbs
- Maximum gate weight: 1,500 lbs
- Lifetime warranty on component replacement (5 years for bearings)
| Part Number(s) | CI3900 |
|---|---|
| Brand | D&D Technologies |
| Series | SHUT IT™ |
| Product Type | Hinges |
| Material | Steel |
| Finish | Zinc Plated |
| Finishing Process | Plated |
| Color | Zinc |
| Load Capacity (lbs) | 3000 lbs each |
| Max Self-Close Gate Weight | 1500 lbs |
| Max Gate Size | 6'H x 8'W (*Approx. Gate Size) |
| Max Gate Swing | 180º |
| Fits | 1-1/2"+ |
| Gap Variance | Fixed at 1/2" |
| Width (W) | 13.8" |
| Height (H) | 5.9" |
| Weight (lbs) | 6.00 |
